Alat Laboratorium Aspal
Showing 7–9 of 9 results
-
Laboratory Penetration Test
Standard Testing : ASTM D-5 / AASHTO T-49
For determining consistency of bituminous materials.
Consist of :
- Penetrometer : Electric control box, 220 V-AC variable timer, ON-OF and START switch for automatic plunger release cast alumunium frame, 4 1/2″ dial indicator, 400 x 0.1 mm dial, knob control. manual electric, weight of needle and flunger : 50 gr.
- Penetration Needle : Steel needle with brass shank, 1 mm dia.
- Transfer Dish : Glass, 100 mm i.d approx.
- Thin Box : (sample container) 55 mm i.d approx, alumunium sheet, seamless.
Dimension (l x w x h) : 50 x 50 x 70 cm / Gross weight : 25 Kg
-

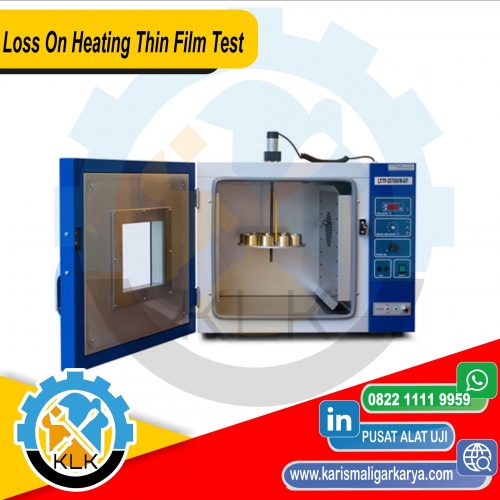

Loss on Heating
ASTM D-6/D-1754 ; AAHSTO T-47/T-179; According SNI 06-2440-1991
For determining the loss in mass (exclusive of water) of asphaltic compounds after heating.
Consist of :
- Revolving Shelf Oven : Variable temperature oven, cast alumunium rotating shelf, 5-6 rpm, external electromotor drive, 220 V-AC, 1400 Watt.
- Thin Box : 55 mm i.d. approx, alumunium sheet, seamless.
- Thermometer : Astm 13 C, 155 to 170°C.
Dimension (l x w x h) : 100 x 100 x 100 Cm / Weight (approx) : 45 Kg
-

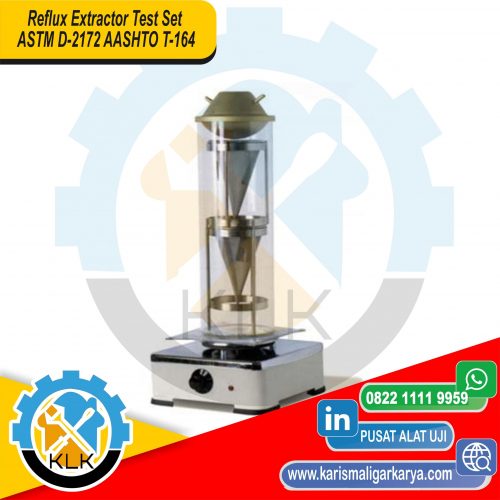

Reflux Extractor Test Set
Standard Testing : ASTM D-2172 / AASHTO T-164 / RSNI M-05-2004
For determining bitument content in hot mixed paving and pavement samples.
Consist of :
- Glass Jar : Glass made, pyrex material, 6inch.
- Funnel : Two wire mesh screen cone.
- Condensor : Brass / copper.
- Hot Plate : 220 V-AC, 1000, single burner.
- Filter Paper : Low ash filter paper, box of 50 sheet.
- Asbestos Wire Gauze : Asbestos center, 15 cm x 15 cm.
Dimension (l x w x h) : 90 x 50 x 50 cm / Gross Weight : 15 Kg
