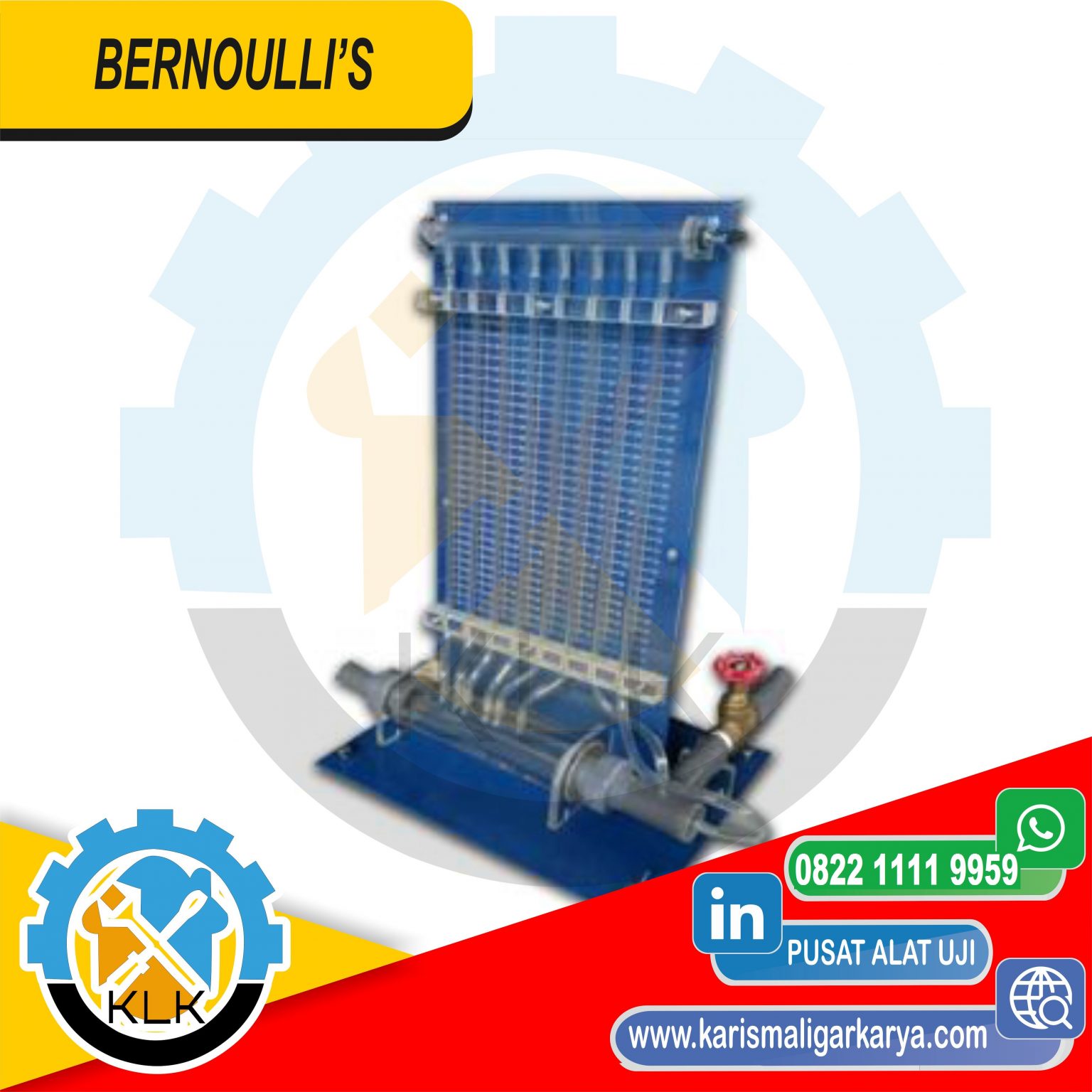

DEMONSTRATION CAPABILITIES:-

Demonstrating Bernoulli’s Theorem and its limitations
Directly measuring the static and total head distribution along a Venturi tube
Determining the meter coefficient at various flow rates

TECHNICAL SPECIFICATIONS:-

Manometer range: 0-300mm
Number of manometer tubes: 8
Throat diameter: 10.0mm
Upstream diameter: 25.0mm
Upstream taper: 14°
Downstream taper: 21°
Venturi section machined from clear acrylic
Seven static pressure tapings plus a total head measurement
Flow control valve
Manometer board with eight tubes
Quick-release fitting for easy connection to Hydraulics Bench
Educational software available as an option.
